Microinverters vs. String Inverters: The Future of Solar Panel Power Conversion
In the rapidly evolving solar industry, the debate between microinverters and string inverters has become one of the most discussed topics among engineers, installers, and homeowners alike. Both technologies have the same core purpose—converting DC (direct current) from solar panels into usable AC (alternating current) for homes and businesses—but their approaches, performance, and future prospects differ significantly.

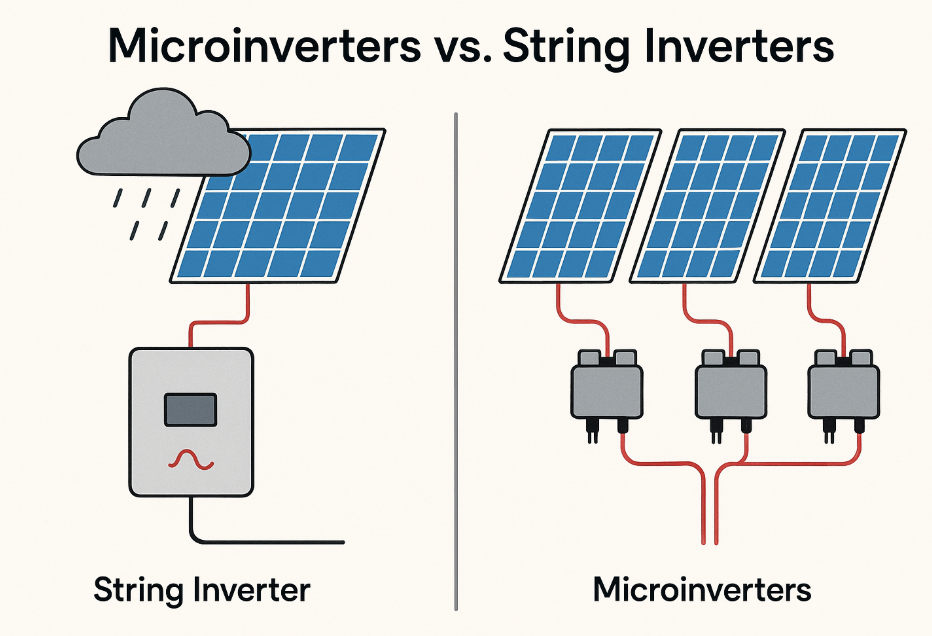

String Inverters
A string inverter connects multiple solar panels in series, forming a “string.” The combined DC power from all panels is sent to a single inverter, which converts it to AC. This centralized approach simplifies installation but can create performance bottlenecks—if one panel underperforms, the entire string’s output drops.
Microinverters
A microinverter is a small, individual inverter attached directly to each solar panel. It performs the DC-to-AC conversion on a per-panel basis, meaning each panel operates independently. This eliminates the “weakest link” issue and improves system flexibility.
Shading and Orientation
String inverters suffer more when one panel is shaded or dirty, as all panels in the string are affected.
Microinverters mitigate shading losses, as only the shaded panel’s output is reduced.
Energy Harvesting
Studies show that microinverters can improve overall energy yield by 5–15% compared to string inverters, especially in installations with partial shading or panels facing different directions.
Installation
String inverters require fewer components and are usually faster to install for large, uniform arrays.
Microinverters involve more hardware at the panel level but offer plug-and-play flexibility.
Maintenance
String inverters are centralized, so a failure means the entire array stops producing.
With microinverters, a failure only affects one panel, making troubleshooting easier but replacement more time-consuming since it’s on the roof.
Scalability
Microinverters allow for incremental expansion—just add more panels and microinverters.
String systems require inverter capacity planning upfront.
When evaluating solar power conversion technologies, reliability plays a major role in the total cost of ownership.
Microinverters are designed to operate in outdoor conditions for the entire lifespan of the solar array, with each unit working independently. This means that if a single microinverter fails, the rest of the system continues producing power with minimal impact on output.
String inverters, on the other hand, centralize the conversion process in one device. While this simplifies system layout, it also means that a failure can temporarily halt the entire array. However, being ground-mounted, string inverters are generally easier to access for inspection and replacement compared to rooftop microinverters.
For both technologies, regular system monitoring and timely maintenance are essential to ensure consistent, long-term performance.
Initial Cost: Microinverters are more expensive per watt, but may offset costs over time with higher energy yield and fewer production losses.
Long-Term ROI: For rooftops with shading or complex layouts, microinverters often deliver better returns. For open, unshaded spaces, string inverters remain a cost-effective choice.
The trend is shifting toward module-level power electronics (MLPE), which includes microinverters and DC optimizers. As solar technology advances, the industry is prioritizing maximum energy harvest, system monitoring, and flexibility—areas where microinverters excel.
With the growing demand for smart, distributed energy systems and the rise of residential and commercial solar-plus-storage solutions, microinverters are poised to play a bigger role. However, string inverters will still dominate large-scale utility projects due to their lower cost per watt.
